8MP (4K) 4096 × 1800

Image Sensor / Focal Length

Dual 1/1.8" CMOS / 3.6mm

Illumination Distance

98.43ft (IR)

Min Illumination

0.0005 lux@F1.0 (Color, 30 IRE)
0.0002 lux@F1.0 (B/W, 30 IRE)

IIlluminator Number

4 (warm light)

DORI Distance

Detect: 230.64ft

Observe: 92.19ft

Recognize: 46.26ft

Identify 22.97ft

IVS (perimeter protection)

Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Stream Capability

3 Streams

SMD

Yes

BLC, HLC, WDR

Yes, Yes, Yes 140 dB

Built-in Audio (2 Way)

Yes, Mic/speaker

Storage

NVR or up to 512GB Max SD Card

Power Supply

PoE (802.3af) or 12 VDC

Power Consumption

Basic: 4.8 W (12 VDC); 5.5 W (PoE) Max. (WDR + intelligence + warm light + SPK): 10.5W (12 VDC); 11.8 W (PoE)

Operating Temperature

–40 °F to +140 °F

Ingress Protection IP Rating

IP67

Casing Material

Full-Metal housing

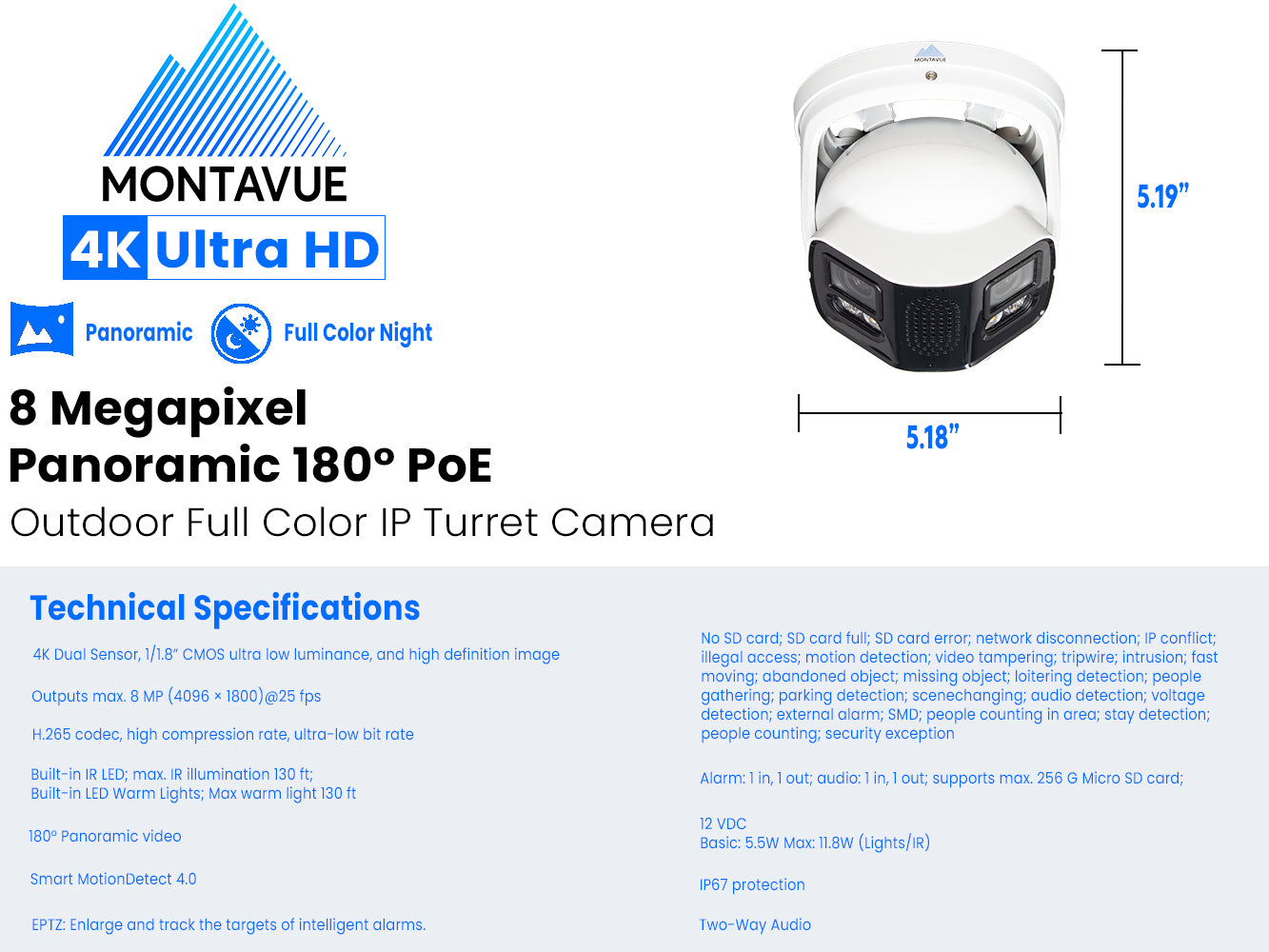

Product Dimensions

4.8" × 5.19" (W × H)

AI SSA

Yes

Active Deterrence

Yes, audio only
