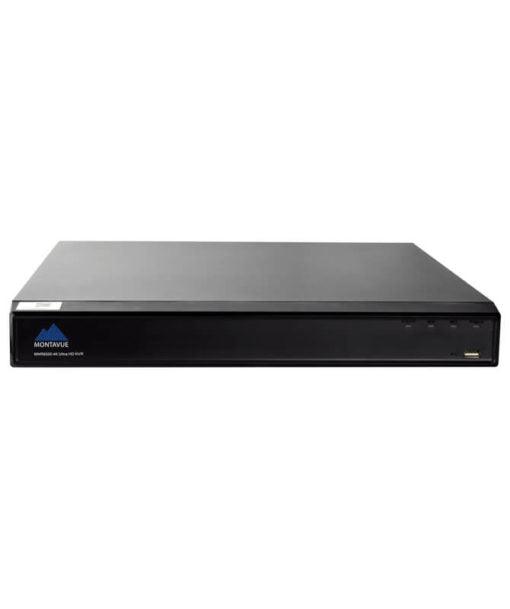

MNR5208-8P-AI | 8 Channel 4K H.265+ Pro-AI NVR with 40TB (2x20TB) HDD Max Capacity - HDDs Not Included

System

Main Processor

Industrial embedded micro-processor

Operating System

Embedded Linux

Operation Interface

Web; local GUI

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

4 channels, 10 IVS rules for each channel

Face Detection

Face Attributes

6 attributes: Gender; age; glasses; expression; mouth mask; beard

Face Detection Performance of AI by Recorder (Number of Channels)

2 channels (up to 12 face images/s each channel)

Face Detection Performance of AI by Camera (Number of Channels)

8 channels

SMD Plus

SMD Plus by Recorder

8 channels

SMD Plus by Camera

8 channels

Video Metadata by Camera

Performance

8 channels

Human Body

Top; top color; bottom; bottom color; hat; bag; gender; age; umbrella

Vehicle

License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location

Non-motor Vehicle

Type; color; number of passengers; helmet

AI Search

Supports searching for target video by metadata

ANPR by Camera

Performance

8 channels

Video

Access Channel

8

Network Bandwidth

AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing
AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing

Resolution

32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF

Decoding Capability

AI disabled:

2-channel 32 MP@20 fps; 2-channel 24 MP@20 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps

AI enabled:

1-channel 32 MP@20 fps; 1-channel 24 MP@20 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 8-channel 5 MP@30 fps;

Video Output

HDMI1: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720
VGA1: 1920 × 1080; 1280 × 1024; 1280 × 720
1-channel VGA, 1-channel HDMI video output.
Heterogeneous video source output for HDMI and VGA
Supports 4K display

Multi-screen Display

Main screen: 1/4/8/9

Sub screen: 1/4/8/9

Third Party Camera Access

ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung

Compression

Video

Smart H.265+; Smart H.264+; H.265; H.264; MJPEG

Audio

PCM; G.711A; G.711U; G.726

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4/IPv6; RTSP; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration

Mobile Phone Access

Android; iOS

Interoperability

ONVIF (profile T/S/G); CGI; SDK

Browser

Chrome; IE9 or later; Firefox

Record Playback

Multi-channel Playback

Up to 8 channels

Record Mode

General, motion detection; intelligent; alarm; POS

Storage Method

Local HDD and network

Backup

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) on/off

Storage

Disk Group

Yes

RAID

Alarm

General Alarm

Motion detection; privacy masking; local alarm

Anomaly Alarm

Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan; cybersecurity exception

Intelligent Alarm

Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map

Alarm Linkage

Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email

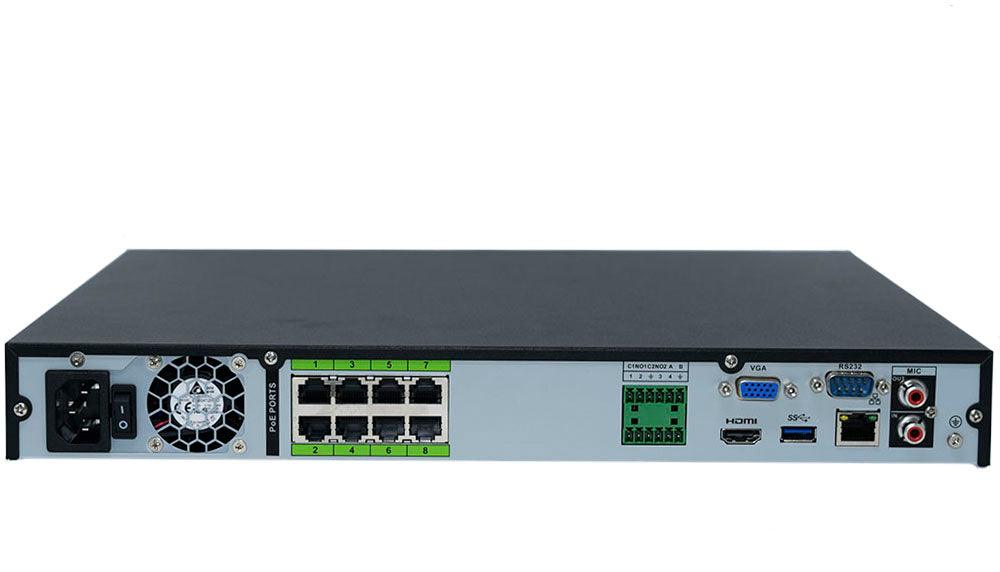

External Port

Audio Input

1 channel, RCA connector

Audio Output

1 channels, RCA connector

HDD

2 SATA III ports, up to 20 TB for a single HDD. The maximum HDD capacity varies with environment temperature.

Alarm Input

4 channels

Alarm Output

2 channels

PoE Port

RS-232

1 channel, used to debug and pass through serial data

RS-485

1

USB

1 front USB 2.0 port, 1 rear USB 3.0 port

HDMI

1

VGA

1

Network

1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet port

General Parameter

Power Supply

Single, 100V–240V AC, 47 Hz–63 Hz

Power Consumption

< 10W (without HDD) Total output power of PoE is 130 W, the maximum output power of a single port is 25.5W

Net Weight

2.57 kg (5.67 lb)

Gross Weight

3.8 kg (8.38 lb)

Product Dimensions

375.0 mm × 329.4 mm x 53.0mm (14.76" × 12.97" × 2.09") (W × D × H)

Package Dimensions

451.0 mm × 147.0 mm × 425.0 mm (17.76" × 5.79" × 16.73") (W × D × H)

Operating Temperature

–10°C to +55°C (+14°F to +131°F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–93% (RH)

Storage Humidity

30%–85% (RH)

Installation

Rack or desktop

Certifications

FCC: 47 CFR FCC Part15, SubpartB, Class A
CE-EMC: EN 55032: 2015+A1: 2020; EN IEC 61000-3-2: 2019+A1: 2021; EN 61000-3-3: 2013+A1: 2019+A2: 2021; EN 55035: 2017+A11: 2020; EN 50130-4: 2011+A1: 2014
CE-LVD: EN 62368-1: 2014
